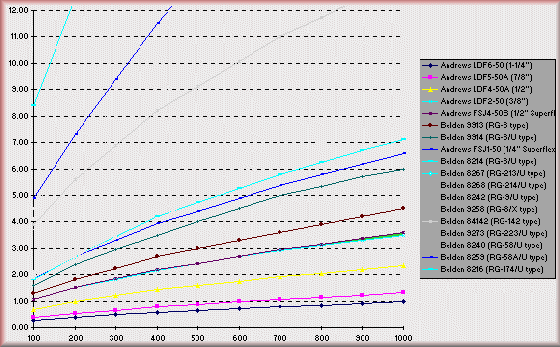

Coax Style Frequency in Mhz |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
O.D. |
Shield |
Notes |
"Andrews LDF6-50
(1-1/4"")" |
0.28 |
0.40 |
0.49 |
0.58 |
0.65 |
0.72 |
0.79 |
0.85 |
0.91 |
0.97 |
n/a |
n/a |
n/a |
|
"Andrews LDF5-50A (7/8"")" |
0.37 |
0.54 |
0.66 |
0.78 |
0.88 |
0.97 |
1.07 |
1.15 |
1.23 |
1.31 |
n/a |
n/a |
n/a |
|
"Andrews LDF4-50A (1/2"")" |
0.68 |
0.98 |
1.20 |
1.42 |
1.59 |
1.75 |
1.92 |
2.06 |
2.20 |
2.34 |
n/a |
n/a |
n/a |
|
"Andrews LDF2-50 (3/8"")" |
1.05 |
1.50 |
1.83 |
2.16 |
2.42 |
2.67 |
2.93 |
3.12 |
3.31 |
3.50 |
n/a |
n/a |
n/a |
|
"Andrews FSJ4-50B (1/2"" Superflex)" |
1.05 |
1.50 |
1.84 |
2.18 |
2.44 |
2.69 |
2.95 |
3.16 |
3.37 |
3.58 |
n/a |
n/a |
n/a |
Belden 9913
(RG-8 type) |
1.30 |
1.80 |
2.25 |
2.70 |
3.00 |
3.30 |
3.60 |
3.90 |
4.20 |
4.50 |
0.405 |
100% |
braid shield over foil shield |
Belden 9914
(RG-8/U type) |
1.60 |
2.40 |
2.95 |
3.50 |
4.00 |
4.50 |
5.00 |
5.35 |
5.70 |
6.00 |
0.403 |
100% |
braid shield over foil shield |
"Andrews FSJ1-50
(1/4"" Superflex)" |
1.85 |
2.68 |
3.30 |
3.92 |
4.40 |
4.89 |
5.37 |
5.78 |
6.18 |
6.59 |
n/a |
n/a |
n/a |
Belden 8214
(RG-8/U type) |
1.80 |
2.70 |
3.45 |
4.20 |
4.73 |
5.27 |
5.80 |
6.25 |
6.70 |
7.10 |
0.403 |
97% |
n/a |
Belden 8267
(RG-213/U type) |
1.90 |
2.70 |
3.40 |
4.10 |
4.90 |
5.70 |
6.50 |
7.05 |
7.60 |
8.00 |
0.405 |
97% |
n/a |
Belden 8268
(RG-214/U type) |
1.90 |
2.70 |
3.40 |
4.10 |
4.90 |
5.70 |
6.50 |
7.05 |
7.60 |
8.00 |
0.425 |
97% |
double silver shield |
Belden 8242
(RG-9/U type) |
2.10 |
3.00 |
3.90 |
4.80 |
5.37 |
5.93 |
6.50 |
7.05 |
7.60 |
8.20 |
0.42 |
98% |
silver inner double shield |
Belden 9258
(RG-8/X type) |
3.70 |
5.40 |
6.70 |
8.00 |
9.03 |
10.07 |
11.10 |
11.95 |
12.80 |
13.50 |
0.242 |
95% |
n/a |
Belden 84142
(RG-142 type) |
3.90 |
5.60 |
6.90 |
8.20 |
9.13 |
10.07 |
11.00 |
11.75 |
12.50 |
13.50 |
0.195 |
98% |
brown FEP jacket - double silver shield |
Belden 9273
(RG-223/U type) |
4.10 |
6.00 |
7.40 |
8.80 |
9.87 |
10.93 |
12.00 |
12.90 |
13.80 |
14.50 |
0.212 |
95% |
double silver shield |
Belden 8240
(RG-58/U type) |
4.50 |
6.80 |
8.40 |
10.00 |
11.33 |
12.67 |
14.00 |
15.00 |
16.00 |
17.00 |
0.193 |
95% |
n/a |
Belden 8259
(RG-58A/U type) |
4.90 |
7.30 |
9.40 |
11.50 |
13.33 |
15.17 |
17.00 |
18.50 |
20.00 |
21.50 |
0.193 |
95% |
n/a |
Belden 8216
(RG-174/U type) |
8.40 |
12.50 |
15.75 |
19.00 |
21.67 |
24.33 |
27.00 |
29.00 |
31.00 |
34.00 |
0.101 |
90% |
n/a |
