Model

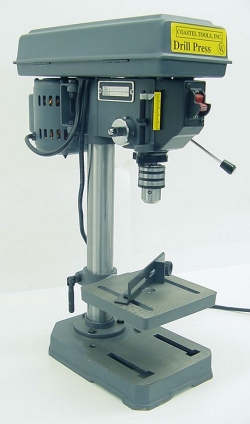

No.: CT5 Bench Top Drill Press
-
Power:
1/3 HP, 120V, 60Hz, Single Phase
-
Speeds:
620, 1100, 1720, 2340, 3100 RPM's
-
Drill
Chuck Capacity: 1/2"
-
Maximum
Spindle Stroke: 2"
-
Maximum
Distance from Chuck to Table: 6-3/4"
-
Maximum
Distance from Chuck to Base: 10"
-
Maximum
Swing: 9-1/2"
-
Column
Diameter: 1.89"
-

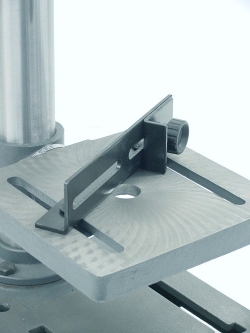

Table
Size: 6-5/16" x 6-1/2"
-
Overall
Dimensions: 23" x 7" x 17"
-
Base
Size: 7" x 11-1/8"
|
