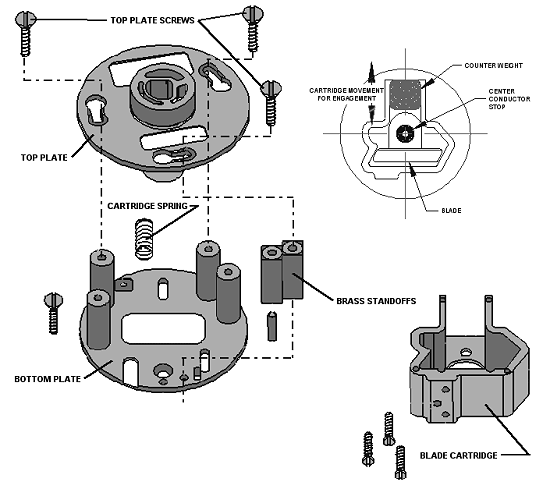

View Placement of TOP PLATE, BOTTOM
PLATE, CARTRIDGE SPRING, and BLADE
CARTRIDGE,
before disassembling cutter head. Note position of
BLADE CARTRIDGE
and top plate center tube.
-
Cartridge blades slide into slots in center tube,
it will only fit one way. Note location and position of
CARTRIDGE SPRING,
and BRASS
STANDOFFS.
-
Place Cartridge into position, align with slots
in Center Tube.
Important:
Do not over tighten TOP PLATE SCREWS.
-
Push cartridge back and forth into slots, to
ensure proper placement before using. Be sure to check spring
action, tight against end stop and cartridge.
|
